| Model Number : | HX-GQJG-13 |
| Brand Name : | HXFiber |
| Supply Ability : | 1500 Kilometer/Kilometers per Month |
| Price : | Negotiable |
| MOQ : | 1KM |

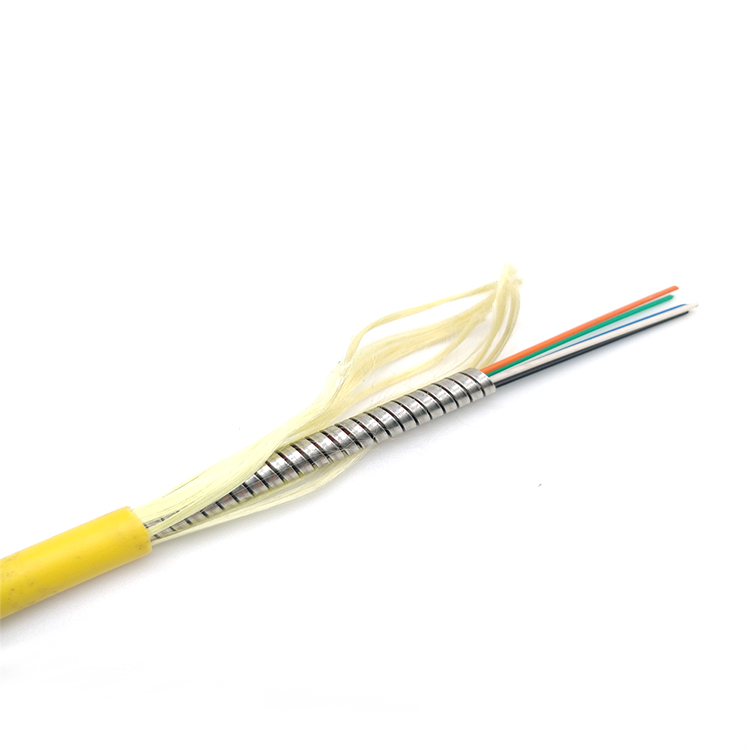

6C G657A2 LSZH PE PVC Anti-Rodent Flexible Armored Fiber Optic Cable with 6 Conductors
Item | Value |
Type | Outdoor/Indoor Fiber Optic Cable |
Place of Origin | Guangdong CHINA |
Brand | OEM |
Number of Conductors | ≥ 1 |
Product name | Armored fiber optic cable |
Application | chemical plant, oil refinery, forest, subway... |
Fiber | 9/125um, 62.5/125um, 50/125um |
Cable OD. | 3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm |
HS CODE | 8544700000 |
Armored | Spiral steel armored protected |
Mode | Singlemode ,MultiMode |
SM / MM | G.652D, G.657A1 or G.657A2 ,OM1,OM2,OM3,OM4 |
Metal Braiding | Stainless steel |
Tensile | Kevlar |
Temperature(°C) | -20~+75°C |
Cable loss(db/km) | 850nm ≦3.5 ; 1300nm ≦1.5 |
Tensile(N) | Long Term: 300N ; Short Term : 500N |
Bending Radius(mm) | Dynamic 20D, Static 10D |
|
|
