2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication

Product Categories
Dongguan HX Fiber Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers

    Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers
    • Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers
    • Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers
    • Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers
    • Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers
    • Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers
    • Buy cheap 2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication from wholesalers

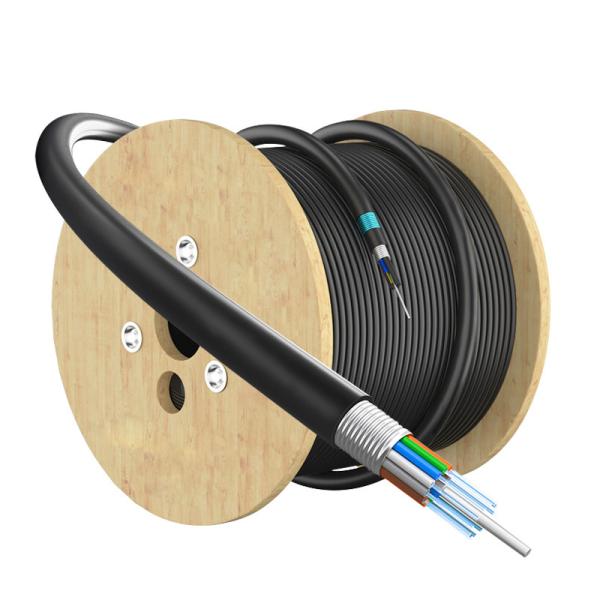

    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication

    Ask Lasest Price
    Model Number : HX-GL1
    Brand Name : HX
    Certification : CE/ROHS/ISO9001
    Supply Ability : 1500000 Piece/Pieces per Month
    Price : Negotiable
    • Product Details
    • Company Profile

    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication

    Technical Parameters
    Fiber Optic Cable Model
    (in increments of 2 fibers)
    Fiber
    Quantity
    Optical Cable Core
    Unit Number
    Maximum Number
    Of Fibers In Loose Tube
    GYTA-2∽30
    2∽30
    5
    6
    GYTA-32∽36
    32∽36
    6
    6
    GYTA-38∽60
    38∽60
    5
    12
    GYTA-62∽72
    62∽72
    6
    12
    GYTA-74∽96
    74∽96
    8
    12
    GYTA-98∽120
    98∽120
    10
    12
    GYTA-122∽144
    122∽144
    12
    12
    GYTA-146∽216
    146∽216
    18
    12
    GYTA-218∽288
    218∽288
    24
    12

    Optical Cable Diameter
    mm

    Optical Cable Weight
    Kg/Km
    Allowable Tensile Force Long-Term/Short-Term N/100mm
    Allowable Flattening Force Long/Short Term
    N/100mm
    9.2
    85
    600/1500
    300/1000
    10.2
    107
    600/1500
    300/1000
    10.4
    110
    600/1500
    300/1000
    11.4
    130
    600/1500
    300/1000
    13.6
    165
    600/1500
    300/1000
    14.8
    195
    600/2000
    300/1000
    16.4
    236
    600/2500
    300/1000
    16.4
    232
    600/2500
    300/1000
    20.0
    300
    1000/3000
    300/1000
    Adapt To The Temperature Range (℃)
    -40v+60

    Minimum Bending Radius
    Static: 10 times the fiber optic cable diameter
    Dynamic: 20 times the fiber optic cable diameter
    Static: 10 times the fiber optic cable diameter
    Note: The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards. This product is mostly used for long-distance communication and inter-office communication pipelines and overhead laying. Fiber optic cables with different core counts and different lengths can be provided according to customer needs.
    Fiber Standard Comparison





    Optical Fiber Type

    Muliti Mode

    G.651
    A1a:50/125
    Gradient Refractive Index
    A1b:50/126



    Single Mode
    G.652 (A、B、C、D)
    B1.1 Conventional
    G.653
    B2 zero-dispersion shift
    G.654
    B1.2 cut-off is long shifted
    G.655
    B4 non-zero dispersion shift
    Product Description
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    APPLICATION
    Adopted to Outdoor distribution.
    Suitable for aerial.pipeline laying method.
    Long distance and local area network communication.

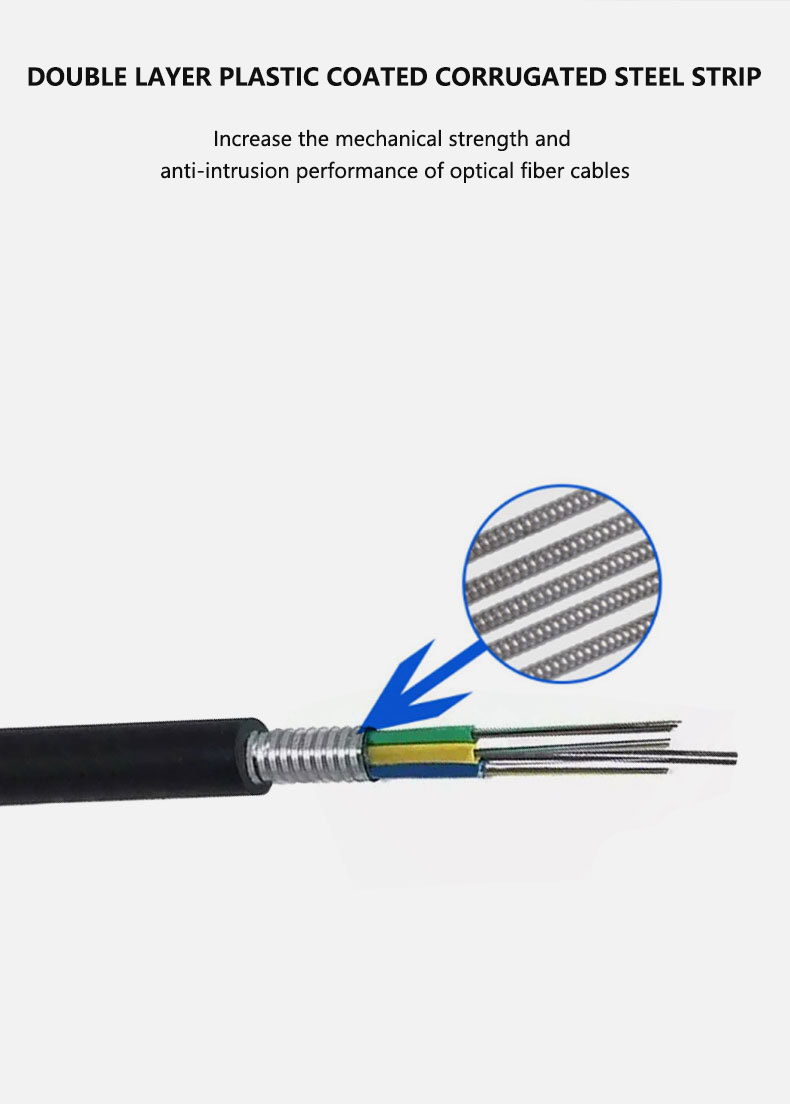

    CHARACTERISTICS
    steel wire strength.filler protect.
    tube fiber.steel tape armord.
    Good ultra violet radiation resistant property.
    Good moisture-resistance.
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Product Design
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
    Customer evaluation
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Company Profile
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept
    Service&Production Capacity
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Foreign Exhibitions
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Cooperative Brand&Certification
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    Payment&Transportation Method
    2-288 Core GYTA Outdoor Duct Coaxial Direct Burial Fiber Optic Cable for SM MM Communication
    FAQ
    1. Are you the real manufacturer?
    Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

    2. What is your minimum quantity?
    1KM. We support new project of our customers, trial order is available.

    3.Can I get a sample?
    Yes, we provide FREE sample and you just need to pay for express freight.

    4. Can you customize the product?
    Yes, we can customize according to your requirements(logo,package,printing and so on).

    5. How long will it take you to deliver?
    Our usual delivery date takes 15 to 20 days.

    6. Can we trust you?
    We founded the factory has 18 years of history, products exported to over 25 countries.

    7. How about your price?
    At the same price, our quality is better; at the same quality, our price is more favorable.

    8. What about Payment?
    L/C,T/T,Western Union and Paypal are acceptable.

    9. What mode of transportation do you support?
    Ocean transportation,air transport,Express, etc.
