1550nm Simplex Multi Mode Fiber Optic Cable Patch

Ask Lasest Price
Model Number :	HX-TYTX1
Brand Name :	HXCOWO
Supply Ability :	1500000 Piece/Pieces per Month
Price :	Negotiable

Add to Cart

Product Details
Company Profile

HXCOWO OM3 SC FC LC ST 850nm/1310nm/1550nm Simplex Multi Mode Fiber Optic Cable Patch

PRODUCT PARAMETERS
Fiber optic outer diameter	φ0.9mm, φ2.0mm, φ3.0mm available
Insertion loss	≤0.2dB
Return loss	PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB
Interchangeability test	≤0.2dB
Vibration test	≤0.1dB (10-60Hz, 1.5mm amplitude)
Tensile strength test	≤0.1dB (0-15Hg tension, except for φ0.9mm fiber)
High-temperature test	≤0.2dB (+85℃, continuous for 100 hours)
Low-temperature test	≤0.2dB (-40℃, continuous for 100 hours)
Temperature cycling test	≤0.2dB (-40℃ to +85℃, after 5 cycles)
Humidity test	≤0.2dB (+25℃ to +65℃, relative humidity 93%, after 100 hours)
Common connectors	SC (standard connector)/LC (small form-factor connector)/FC (ferrule connector)/ST (straight tip connector)
APPLICATION SCOPE
Fiber optic communication systems, fiber optic access networks, fiber optic data transmission, fiber optic CATV, local area networks (LAN), testing equipment

PRODUCT DESCRIPTION

HXCOWO OM3 SC FC LC ST 850nm/1310nm/1550nm Simplex Multi Mode Fiber Optic Cable Patch

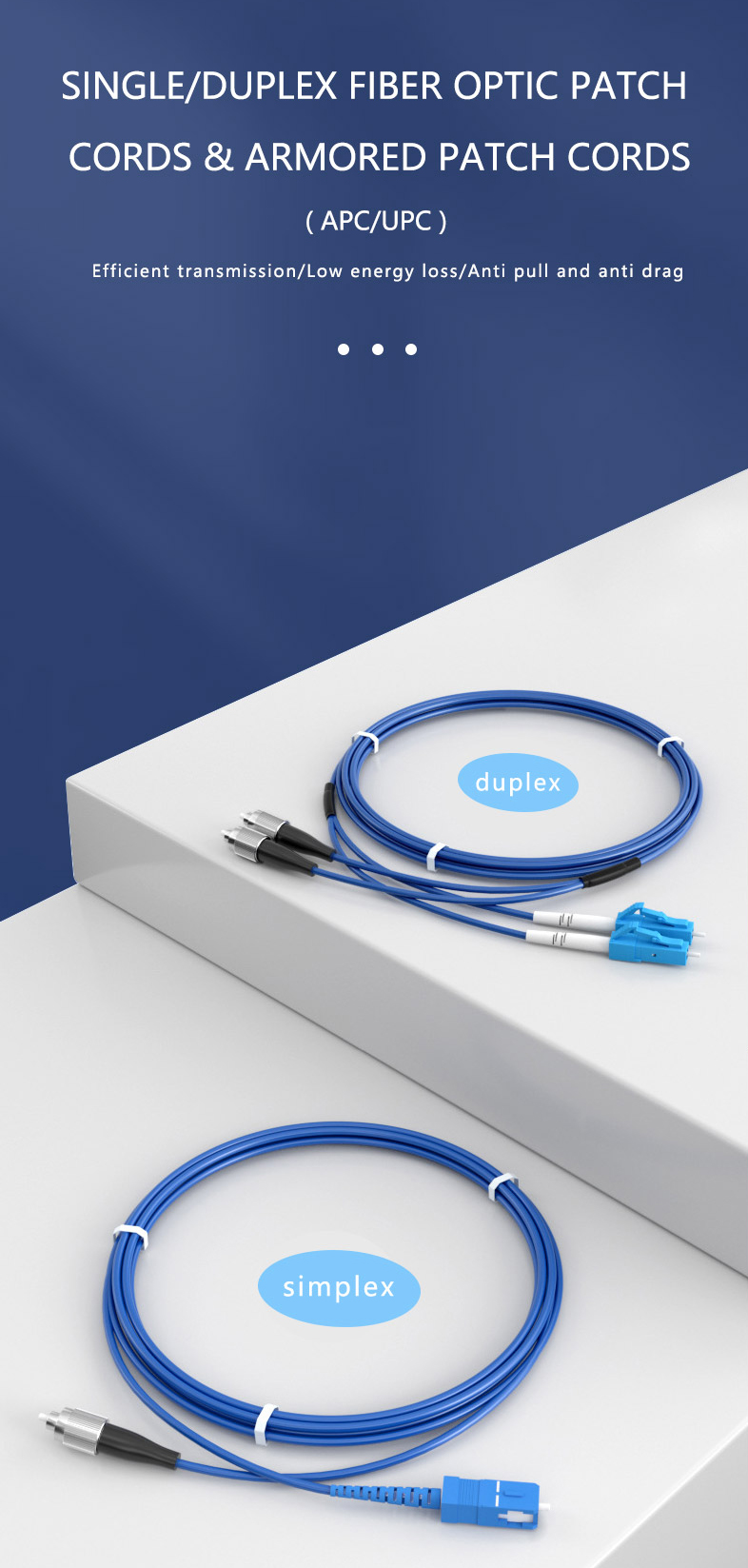

SINGLE/DUPLEX FIBER OPTIC PATCH CORDS & ARMORED PATCH CORDS(APC/UPC)

Efficient transmission/Low energy loss/Anti pull and anti drag

PRODUCT STRUCTURE

Parts for SC Connector

①Fibre Core

②Long Boot

③Spring

④Dust Cap

⑤Ceramic Ferrule

⑥Outer Jacket

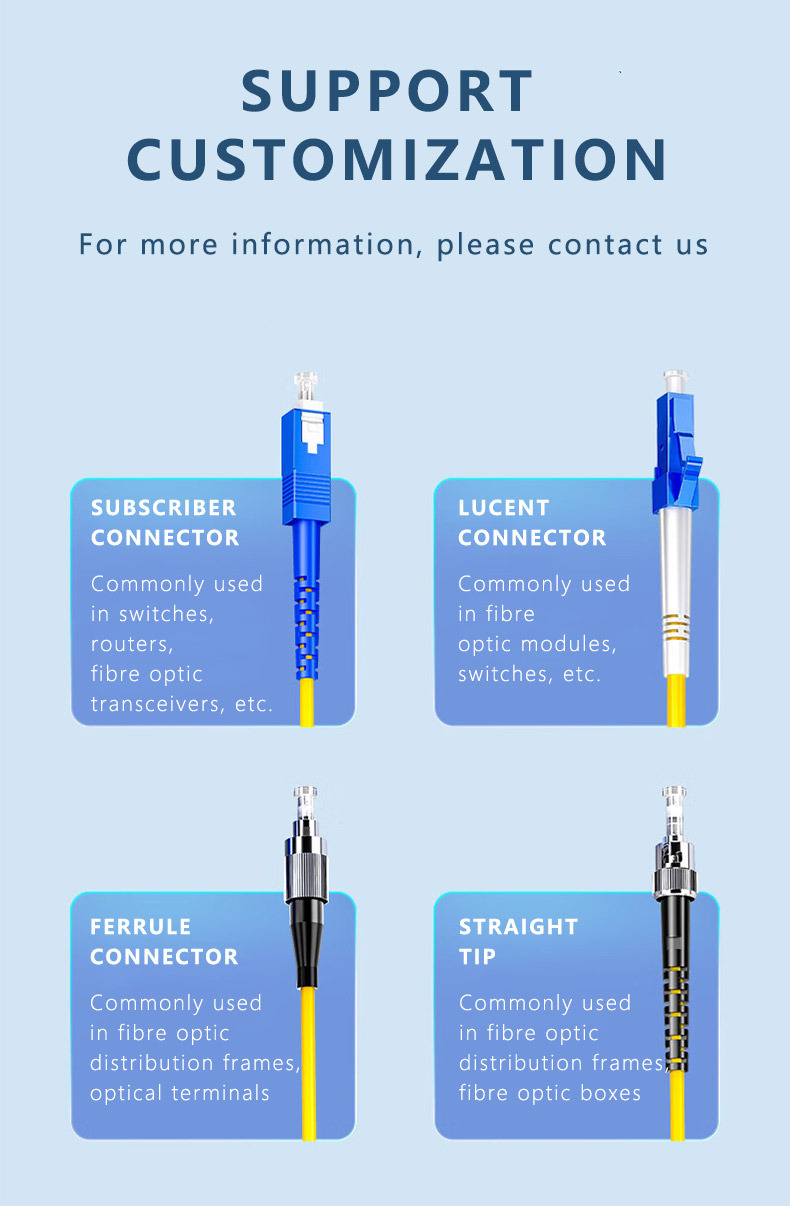

Subscriber Connector

Commonly used in switches, routers, fibre optic transceivers, etc.

Lucent Connector

Commonly used in fibre optic modules, switches, etc.

Ferrule Connector

Commonly used in fibre optic distribution frames, optical terminals

Straight Tip

Commonly used in fibre optic distribution frames, fibre optic boxes

HIGH-PRECISION CERAMIC FERRULE

The use of high-precision ceramic ferrule, improve the speed and flexibility of optical transmission, resistance to insertion and removal times of high-performance stable and reliable

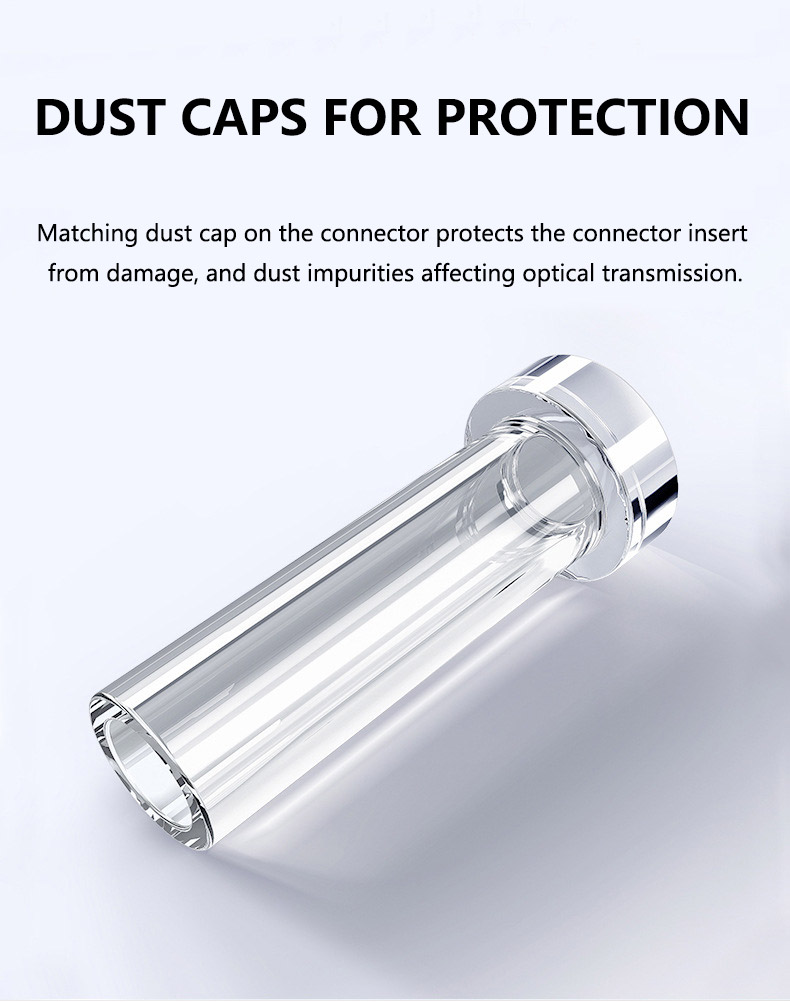

DUST CAPS FOR PROTECTION

Matching dust cap on the connector protects the connector insert from damage, and dust impurities affecting optical transmission.

FIBRE OPTIC PATCHCORD & ARMOURED PATCHCORD STRUCTURE

Customised on Request

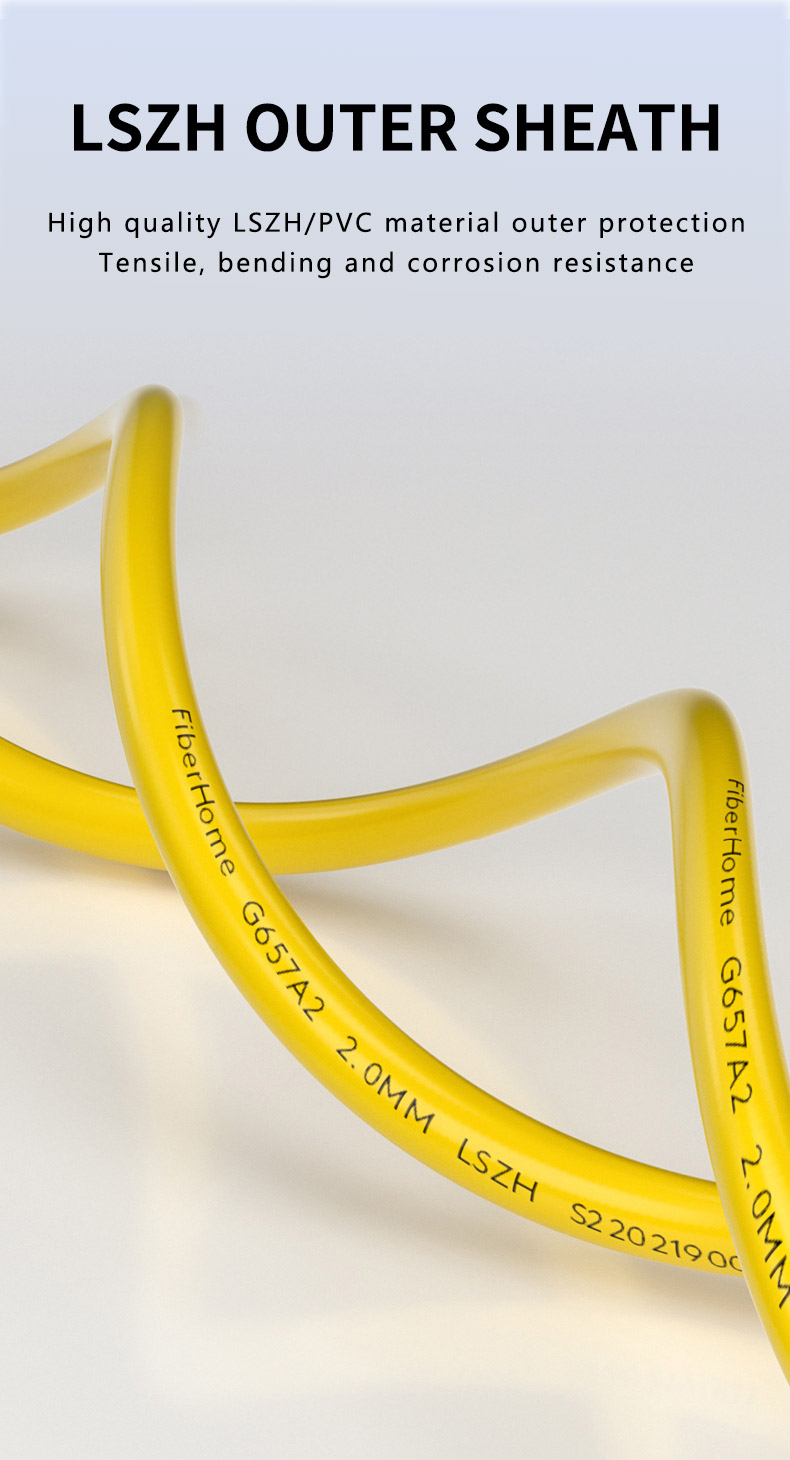

LSZH OUTER SHEATH

High quality LSZH/PVC material outer protection Tensile, bending and corrosion resistance

HIGH-PRECISION GRINDING EQUIPMENT

Ensure that the round centre of the fibre is ground offset and the fibre is recessed, and that the surface of the fibre is free from scratches or defects.

SUPPORTS HOT-SWAPPING WITH LOW INSERTION LOSS

The core is exquisitely ground and made with high insertion and extraction times and long service life.

INSERTION/RETURN LOSS TEST

≤0.2dB

Insertion Losses

≥50dB

Return Losses

END-FACE INSPECTION

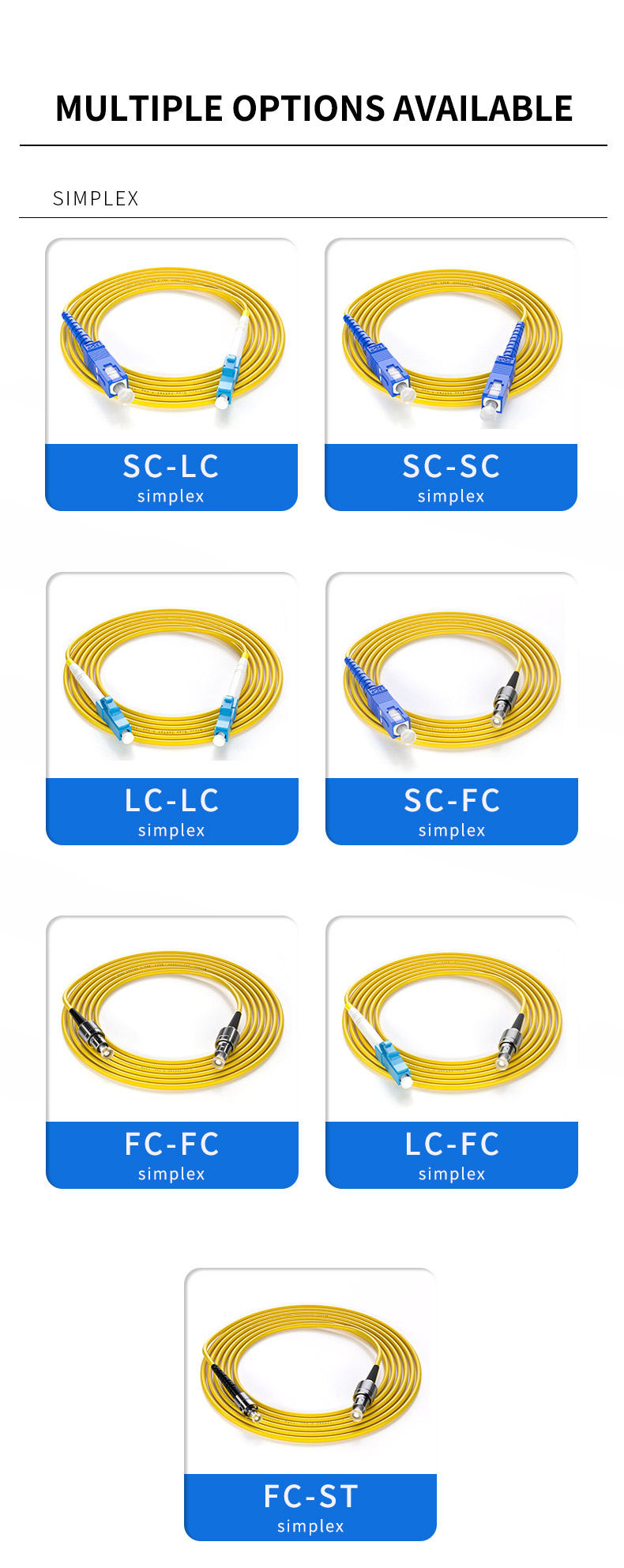

MULTIPLE OPTIONS AVAILABLE

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables.

With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
