HXCOWO GYTA53 48 Core G652D PE Underground Armored Fiber Optic Cable with LSOH Jacket

Ask Lasest Price
Model Number :	HX-SW4
Brand Name :	HXCOWO
Certification :	RoHS
Supply Ability :	1500000 Piece/Pieces per Month
Price :	Negotiable

Add to Cart

Product Details
Company Profile

HXCOWO GYTA53 48 Core G652D PE Underground Armored Fiber Optic Cable with LSOH Jacket

TECHNICAL PARAMETERS
Core Number	Loose Tube Quantity	Filling Rope Number	Fiber Optic Cable Weight (kg/km)
2-6	1	5	177
8-12	2	4	177
14-18	3	3	177
20-24	4	2	177
26-30	5	1	177
32-36	6	0	177
38-48	4	1	194
50-60	5	0	194
62-72	6	0	204
74-84	7	1	239
86-96	8	0	239
98-108	9	1	275
110-120	10	0	275
122-132	11	1	312
134-144	12	0	312
146-216	13-18	5-0	312

Allowable Tensile Force Long Term/Short Term (N)	Allowable Tensile Force Long Term/Short Term (N)	Allowable Flattening Force Long Term/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
1000/3000	800/1500	1000/3000	12.5D/25D
PRODUCT FEATURES
①The inner casing is filled with buffer grease, which protects the optical fiber and plays a waterproof role
②The use of loose casing stranded to ensure the stability of the cable structure
③Strengthening parts to bear the axial load
④The cable core is filled with water-blocking ointment, which can effectively waterproof the cable
⑤Aluminum tape longitudinal wrapping, good moisture barrier performance
⑥The inner sheath can effectively buffer the external mechanical load
⑦Longitudinal wrapping of steel tape, with good lateral pressure resistance

PRODUCT DESCRIPTION

HXCOWO GYTA53 48 Core G652D PE Underground Armored Fiber Optic Cable with LSOH Jacket

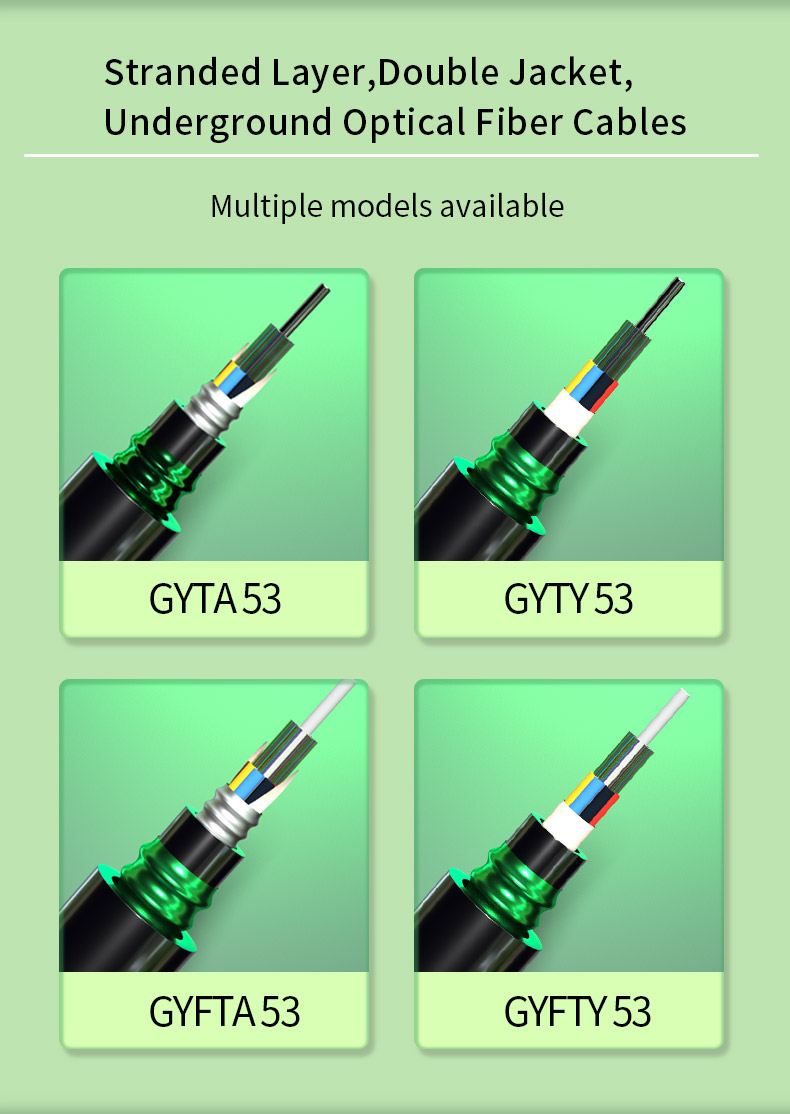

GYTA53 SINGLE-MODE OUTDOOR DOUBLE ARMORED FIBER OPTIC CABLES

Applied to underground laying/outdoor overhead/indoor trunking

DEEP ANALYSIS AND QUALITY ASSURANCE

Each production process is strictly supervised and tested to ensure high quality

LOW LOSS,HIGH-SPEED FUSION WELDING

Adopting high-quality fiber cores that comprehensively optimizing attenuation and dispersion, precise geometric parameter to ensure low fusion loss and high fusion efficiency

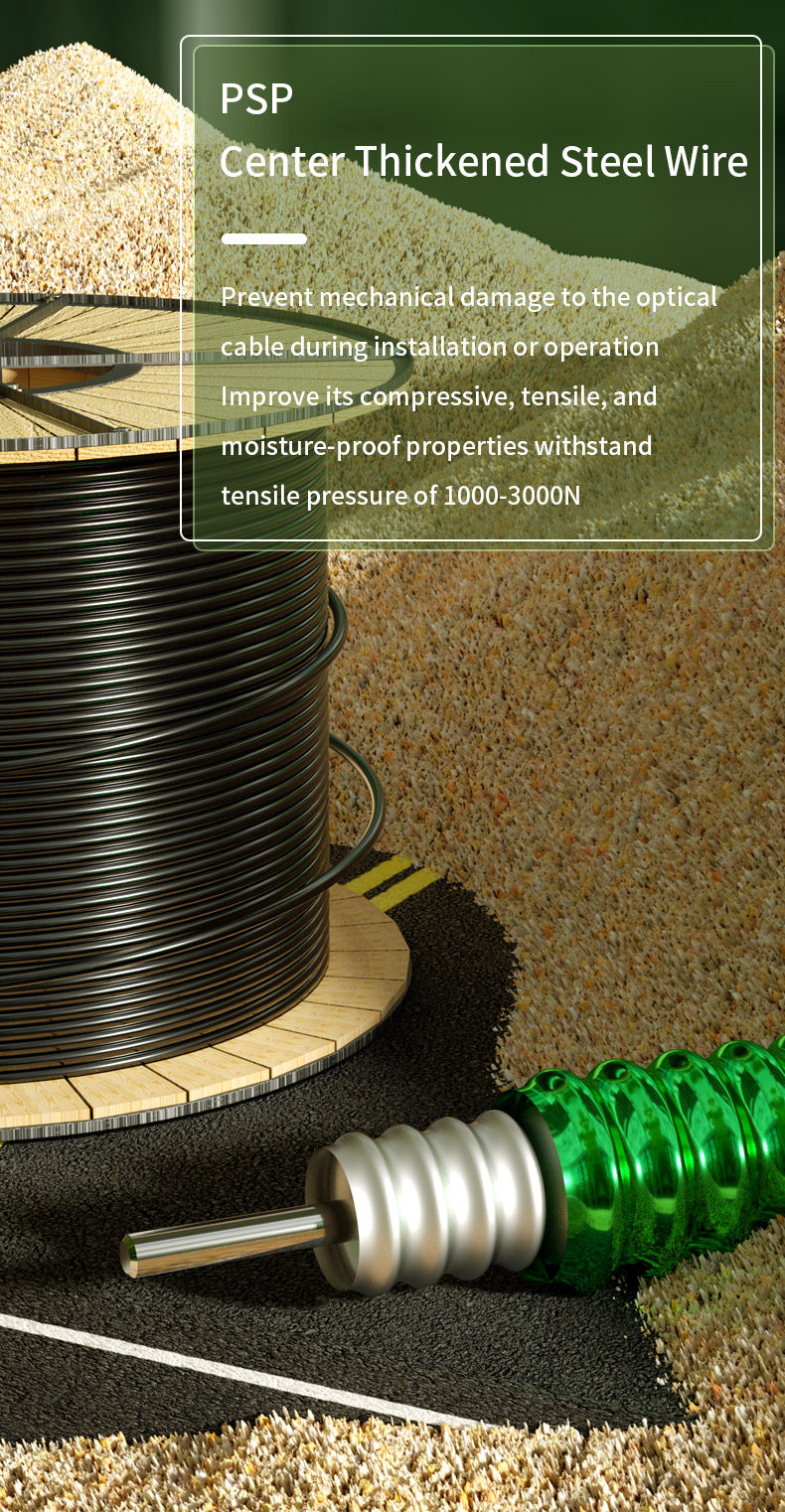

PSP

CENTER THICKENED STEEL WIRE

Prevent mechanical damage to the optical cable during installation or operation Improve its compressive, tensile, and moisture-proof properties withstand tensile pressure of 1000-3000N

POLYETHYLENE(PE)SHEATHING ENGINEERING-PLASTICS

Durable and Sturdy Strict Manufacturing Process High Control Strength of Raw Materials Aging Resistance Long Service Life

Sheath material:PE/PVC/LSZH/PC etc. Customized according to your requirements

CLEAR METER MARKERS UFFICIENT METER QUANTITY

Clear meter markings on the PE outer sheath for convenient and fast construction wiring

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
